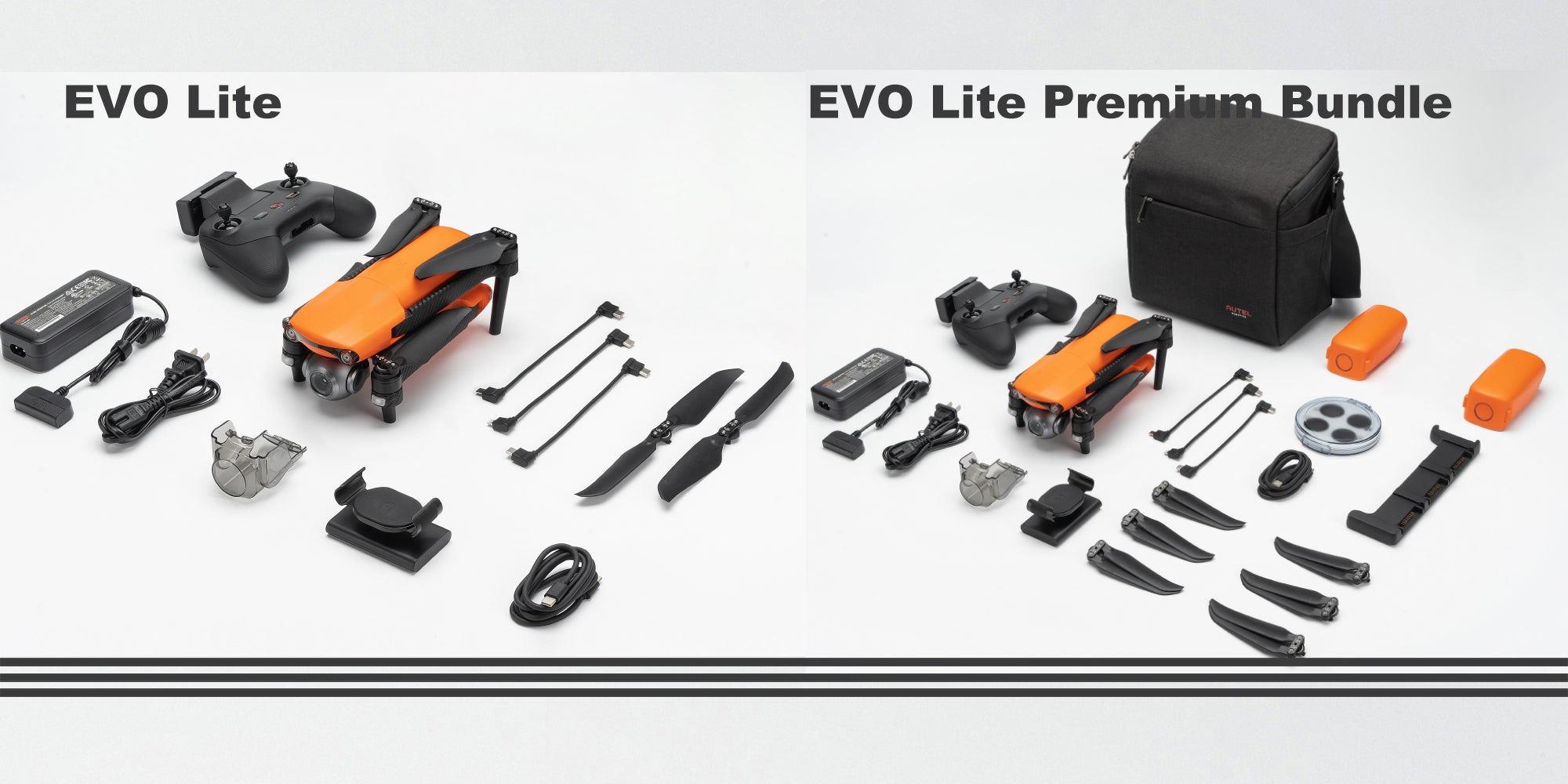

AUTEL NEWEST DRONES EVO LITE Series


OPTION: EVO LITE
COLOR: Arctic White
Price:
Sale price$1,149.00
Stock:
In stock

Description

Estimate shipping

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

DownLoad All

Autel

Option

Specification

  Aircraft

Takeoff weight

820g

Dimensions (including blades)

Folded: 210×104×85mm

Unfolded: 430×517×85mm

Wheelbase

368mm

Max ascent speed

8m/s (sport), 5m/s (normal), 3m/s (stable)

Max descent speed

4m/s (sport), 3m/s (normal), 2m/s (stable)

Max level flight speed(no wind, near sea level)

19m/s (sport), 10m/s (normal), 5m/s (stable)

Max takeoff altitude

5000m

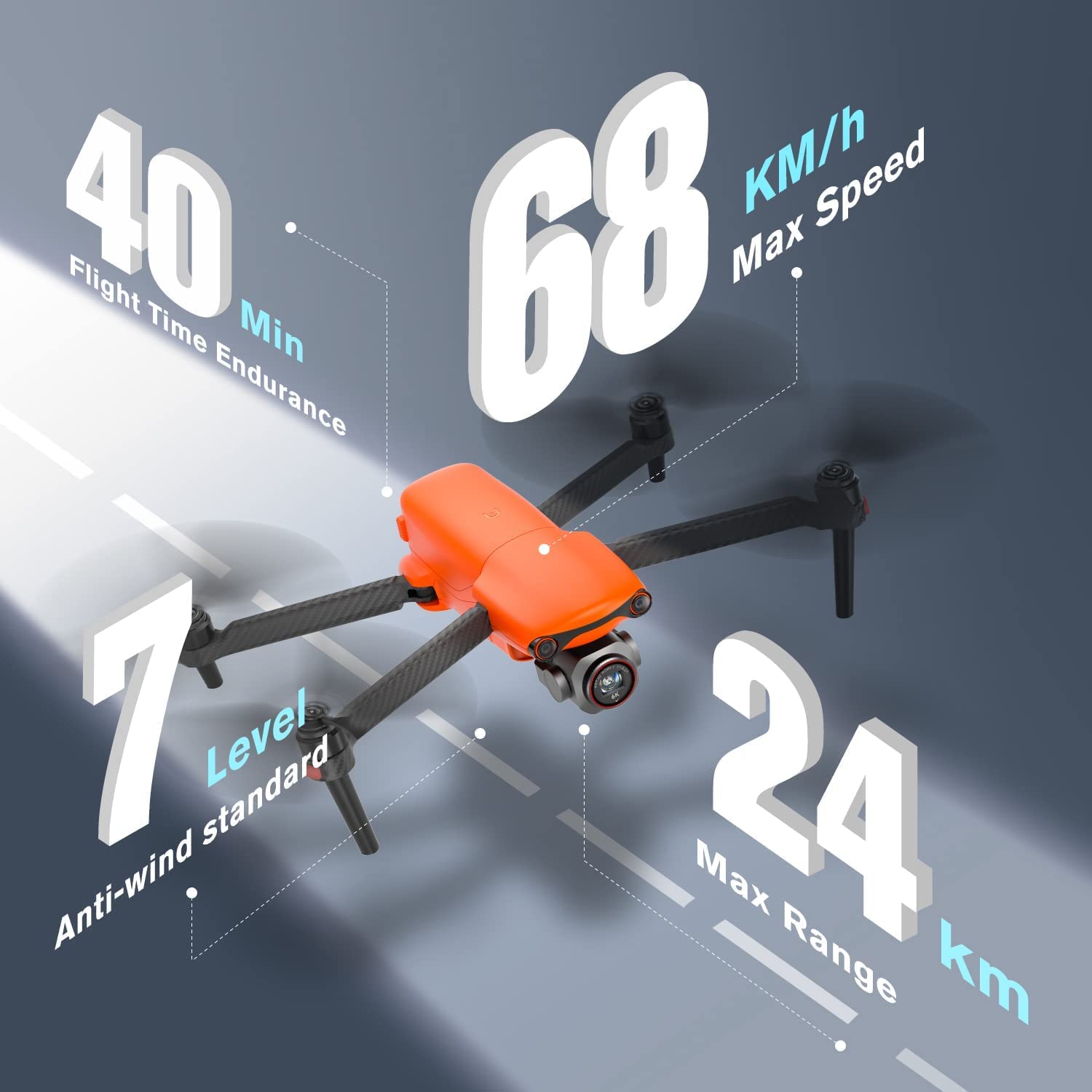

Max flight time (no wind)

40min

Max hovering time (no wind)

38min

Max  flight distance (no wind)

24km

Max wind resistance

Level 7

Max tilt angle

33°(movement), 25°(normal), 25°(stable)

Max angular velocity

200°(movement), 120°(normal), 60°(stable)

Operating temperature

-10°C ~ 40°C

Operating frequency

2.400-2.4835GHz,5.725-5.850GHz,5.150-5.250GHz

Transmission power (EIRP)

FCC:≤30dBm

GNSS

GPS

Hovering accuracy

Vertical:±0.1m (when the visual positioning is active), ±0.5m (with GPS positioning); Horizontal:±0.3m (when the visual positioning is active), ±1.5m (with GPS positioning);

  Gimbal-Lite

Mechanical range

Pitch: -135°~45°

Roll: -45°~45°

Yaw: -90°~90°

Rotate: -400°~400°

Controllable range

Pitch: -90°~30°

Yaw: -80°~80°

Rotate: -360°~360°

Stabilization

4-axis,(horizontal/vertical/tilt/rotation shooting)

Max control speed (pitch)

30°/s

Angular vibration range

±0.003°

  Gimbal-Lite +

Mechanical range

Pitch: -135°~45°

Roll: -45°~45°

Yaw: -90°~90°

Controllable range

Pitch: -90°~ +30°

Yaw: -80°~ +80°

Stabilization

3-axis

Max control speed (pitch)

30°/s

Angular vibration range

±0.003°

Sensing system

Forward

Accurate measurement range: 0.5~18m

Effective sensing speed:<12m/s

FOV: horizontal<70°, vertical <88°

Backward

Accurate measurement range: 0.5~18m

Effective sensing speed:<12m/s

FOV: horizontal<40°, vertical <30°

Downward

Accurate measurement range: 0.5~22m

Visual hovering range: 0.5~40m

FOV: horizontal<40°, vertical <30°

Operating environment

Forward, backward:

Surface with clear pattern and adequate lighting(lux> 15)

Downward:

Surface with clear pattern and adequate lighting(lux> 15);

Detects diffuse reflective surfaces(>20%) (walls, trees, people, etc.)

  Camera - Lite

Sensor

CMOS: 1/1.28 inch

Effective pixels: 50M

Pixel size: 1.22μm*1.22μm

Lens

FOV: 85°

Equivalent focal length: 23mm

Aperture: f/1.9

Focus range: 0.5m ~ ∞

Focus mode: PDAF+CDAF/MF

Shooting mode

Automatic mode (P gear): EV adjustable, ISO/Shutter automatic

Manual mode (M gear): ISO/Shutter adjustable, EV not adjustable

Shutter priority (S gear): Shutter/EV adjustable, ISO automatic

ISO range

Video: ISO100 ~ ISO6400

Photo: ISO100 ~ ISO6400

Night scene mode: ISO up to 64000

Shutter speed

Photo mode: 1/8000 ~ 8s

Other: 1/8000 ~ 1/frame rates

Portrait blur

Real-time image transmission portrait blur and photo portrait blur

Defog mode

Support

Zoom range

Digital zoom: 1 ~ 16 times

Lossless zoom: 4K: 2 times; 1080p: 4 times

Note:

4K: more than 2 times the digital, the following is lossless

1080P: more than 4 times the digital, the following is lossless

Photo format

JPG / DNG / JPG+DNG

Photo resolution

50MP:8192x6144(4:3)

12.5MP(default):4096x3072(4:3)

4K:3840x2160(16:9)

Photo shooting mode

Single shot

Burst shooing: 3/5

Auto exposure bracketing(AEB): 3/5 shots

Interval: 2s/3s/4s/5s (default)/6s/.../60s (DNG min 5s)

HDR imaging: 8192x6144/4096x3072/3840x2160

HyperLight: 8192x6144/4096x3072/3840x2160

Video coding format

H265/H264

Video resolution

3840x2160 p60/50/48/30/25/24

2720x1528 p60/50/48/30/25/24

1920x1080 p120/60/50/48/30/25/24

HDR:

3840x2160 p30/25/24

2720x1528 p30/25/24

1920x1080 P60/50/48/30/25/24

Max bitrate

120Mbps

Timelapse

Original image:3840*2160,JPG/DNG

Video:4K P25

Panorama

Horizontal/Vertical/Wide-angle/Spherical

Original image: 4096*3072,JPG/DNG

Supported file system

Fat32、exFat

Video format

MP4/MOV

WIFI transfer

20MB/s

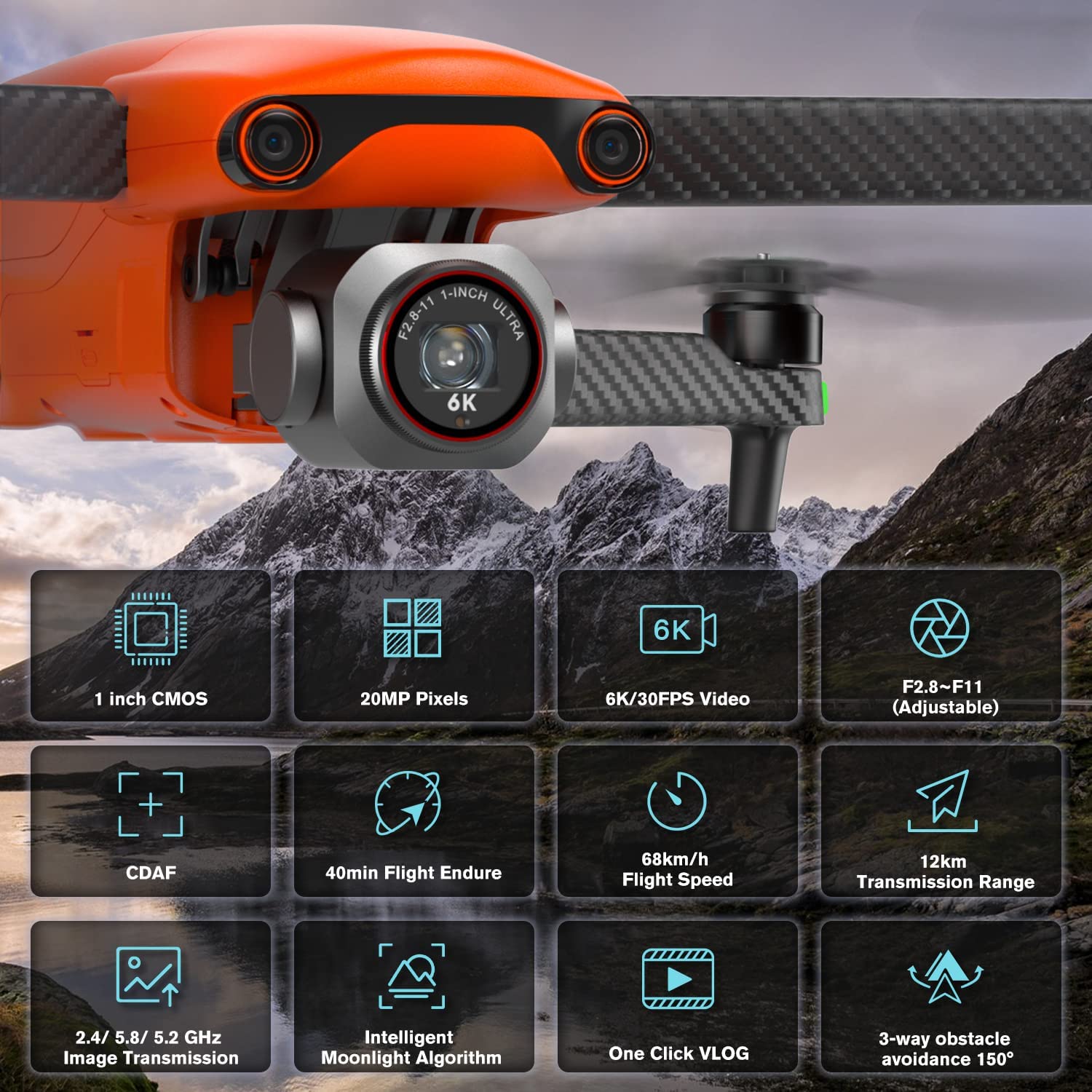

  Camera - Lite+

Sensor

CMOS: 1 inch

Effective pixels: 20M

Pixel size: 2.4μm*2.4μm

Lens

FOV: 82°

Equivalent focal length: 29mm

Aperture: f/2.8 ~ f11

Focus range: 0.5m ~ ∞

Focus mode: CDAF/MF

Shooting mode

Automatic mode (P gear): EV is adjustable, Shutter/Aperture is not adjustable, ISO is automatic or adjustable.

Manual mode (M gear): ISO/Shutter/Aperture is adjustable, EV is not adjustable.

Shutter priority (S file): Shutter/EV adjustable, Aperture automatic, ISO automatic or adjustable.

Aperture priority (A gear): Aperture/EV adjustable, Shutter automatic, ISO automatic or adjustable.

ISO range

Video: ISO100 ~ ISO6400

Photo: ISO100 ~ ISO6400

Night scene mode: ISO up to 64000

Shutter speed

Photo mode: 1/8000 ~ 8s

Other: 1/8000 ~ 1/frame rates

Portrait blur

Real-time image transmission portrait blur and photo portrait blur

Defog mode

Support

Zoom range

Digital zoom: 1 ~ 16 times

Lossless zoom: 4K: 1.3 times; 1080p: 3 times

Note:

6K: Digital zoom

4K: more than 1.3 times the digital, the following is lossless

1080P: more than 3 times the digital, the following is lossless

Photo format

JPG(10bit) / DNG(12bit) / JPG+DNG

Photo resolution

5472x3648 (3:2,default)

5472x3076 (16:9)

3840x2160 (16:9)

Photo shooting mode

Single shot

Burst shooing: 3/5

Auto exposure bracketing(AEB): 3/5 shots

Interval: 2s/3s/4s/5s (default)/6s/.../60s (DNG minimum 5s)

HDR imaging: 5472x3648/3840x2160

HyperLight: 5472x3648/3840x2160

Video coding format

H265/H264

Video resolution

5472x3076 p30/25/24

3840x2160 p60/50/48/30/25/24

2720x1528 p60/50/48/30/25/24

1920x1080 p120/60/50/48/30/25/24

HDR:

3840x2160 p30/25/24

2720x1528 p60/50/48/30/25/24

1920x1080 p60/50/48/30/25/24

Max bitrate

120Mbps

Timelapse

Original image:5472*3076/3840*2160,JPG/DNG

Video:5.4K/4K P25

Panorama

Horizontal/Vertical/Wide-angle/Spherical

Original image: 5472*3648, JPG/DNG

Supported file system

Fat32、exFat

Video format

MP4/MOV

WIFI transfer

20MB/s

  Remote Controller & image transmission

Operating frequency

2.400-2.4835GHz,5.725-5.850GHz, 5.150-5.250GHz

Max transmission distance (unobstructed, free of interference)

FCC:12km

Operating temperature

0°C ~ 40°C

Transmission power (EIRP)

FCC:≤30dBm

Battery capacity

3930mAh

Max battery life

~ 3.5h (when connected to a mobile phone)

~ 2.5h (when not connected to mobile phone)

Interface type

Type C

Transmission system

Autel SkyLink

Realtime transmission quality

Transmission distance<1km:2.7K 30fps

Transmission distance>1km:1080P 30fps

Transmission bitrate

90Mbps

Transmission delay

≤200ms

  Adapter

Input

100-240V/50-60HZ

Output

12.75V⎓5A

Rated power

63.75W

Aircraft Battery

Capacity

6175mAh

Voltage

11.13V

Max charging voltage

12.75V

Battery Type

Li-Po 3S

Energy

68.7Wh

Charging temperature

5~45℃

Single battery charging time

90min

Max charging power

78W

App

Mobile App

Autel Sky

Mobile system required

iOS 12.0 and above

Android 8.0 and above

Storage

Built-in storage

6GB

SD storage

max. support 256GB(UHS-3 rating required)
