Autel Robotics EVO II Dual 640T Thermal & 8K Drone Rugged Bundle V2

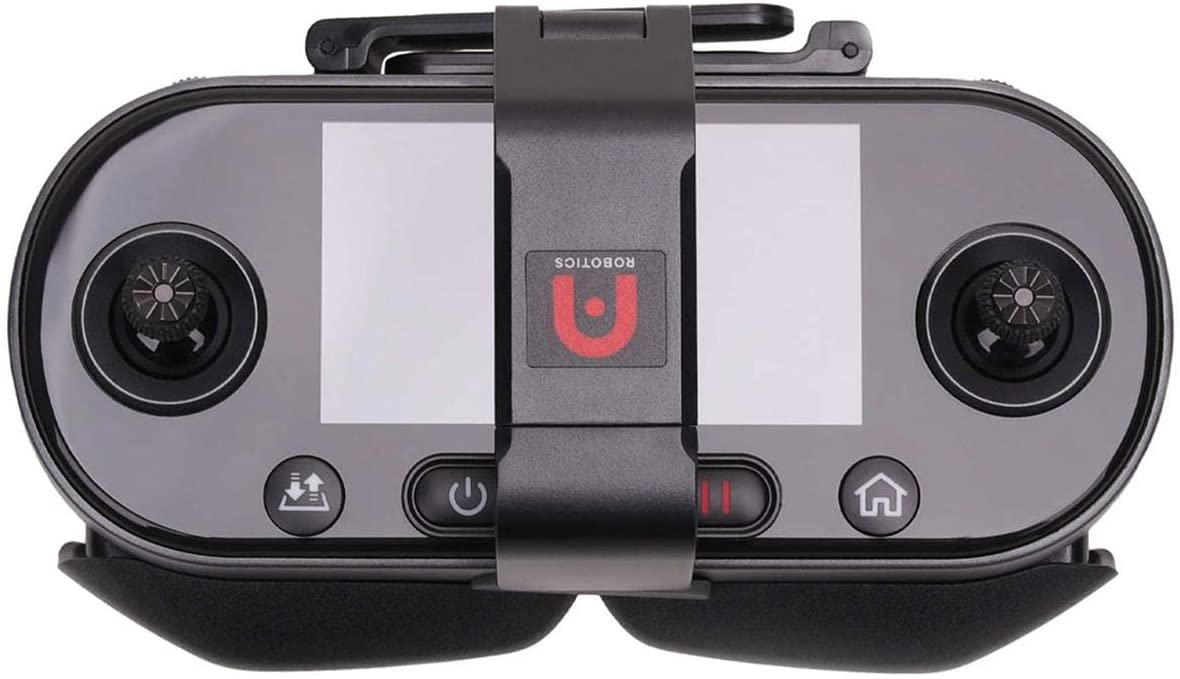

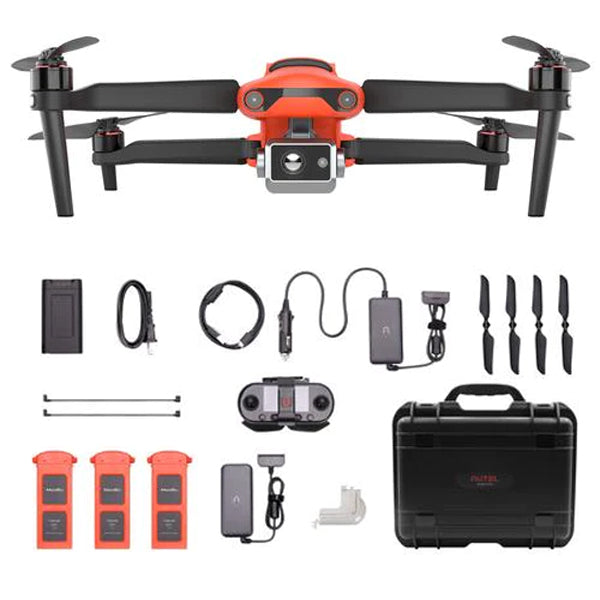

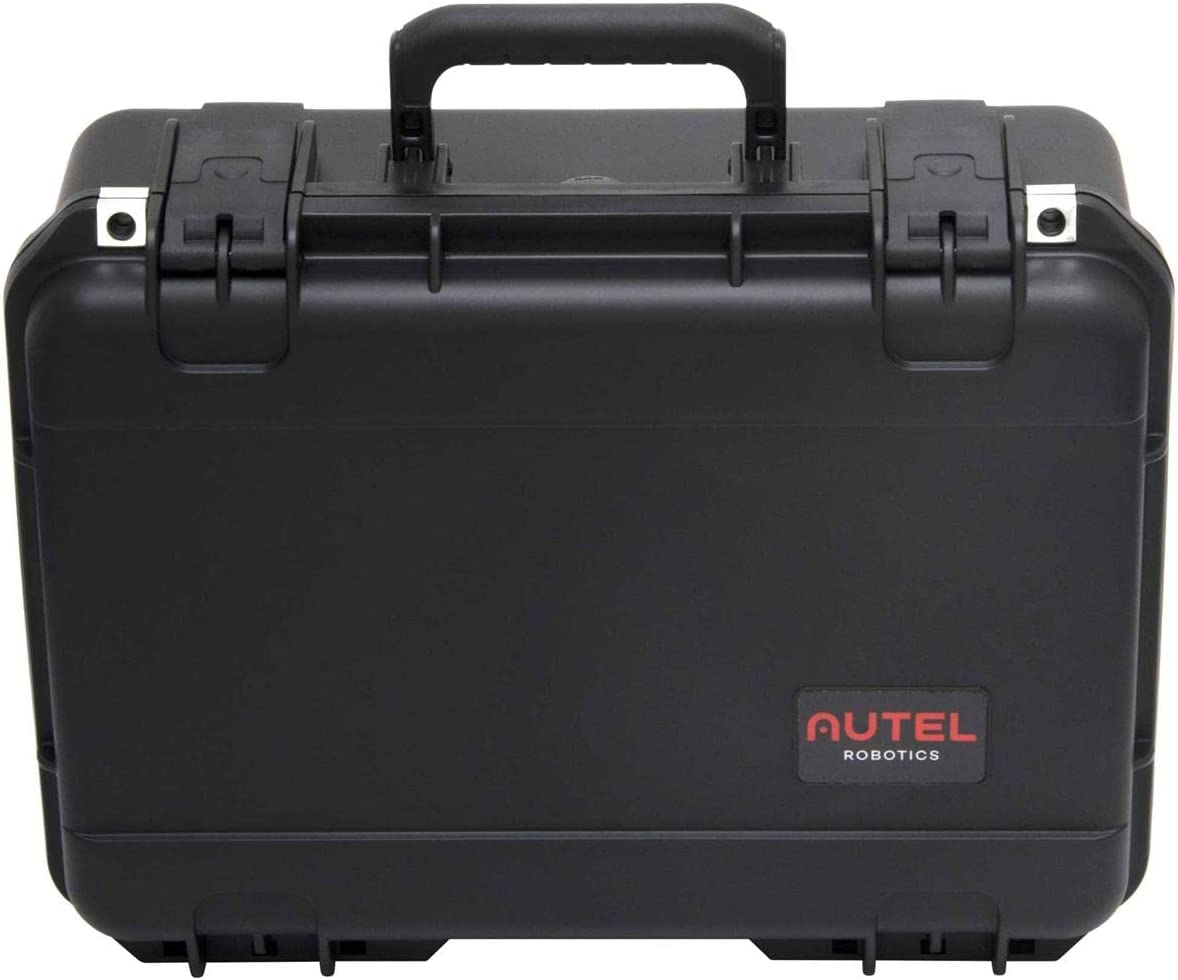

Included in this bundle: 1x EVO II 640T aircraft, 1x Remote Controller, 1x EVO II Battery Charging Hub, 1x EVO II 12V Car Charger, 1x EVO II Hard Case, 2x Additional Aircraft Batteries (for a total of 3 total batteries) & 2x Additional Propeller Pairs. In addition, the Autel Robotics EVO II 640T Bundle comes standard with one remote controller, one aircraft charger, one USB Micro A-USB Micro B cable, one USB Micro A-USB Type C cable, one gimbal cover, a packing list (includes quick guide, instructions, etc.), and a warranty card
- 8K/48mp RGB Camera
- Safe & Encrypted Data
- 3 Included batteries
- 40-Minute max flight time
- Professional Hard Case Included
- 640×512 @ 30hz Thermal Sensor
Features
The new generation of Autel Robotics’ thermal imaging sensor has a resolution of up to 640 x 512 at 30fps, allowing subjects to be recognized at up to 100 m away
The 8K RGB image sensor captures unmatched detail in 8K 25fps (7,680 x 4,320) and 4K 60fps (3,840 x 2,160) video resolutions
Capture dynamic 48MP image stills, allowing for complete flexibility to crop, scale, punch in, and create prints up to 5’ x 6’ (8,000 x 6,000)
With 10 integrated thermal color palettes and picture-in-picture mode, quickly identify and interpret data through thermal overlays on top of the visible light/RGB image
Maintain clarity through zoom with a 13mm lens, 8x optical zoom and 4x lossless zoom while maintaining 1080p resolution
Boasts flight times up to 38 minutes – the longest battery life of any foldable aircraft of its size

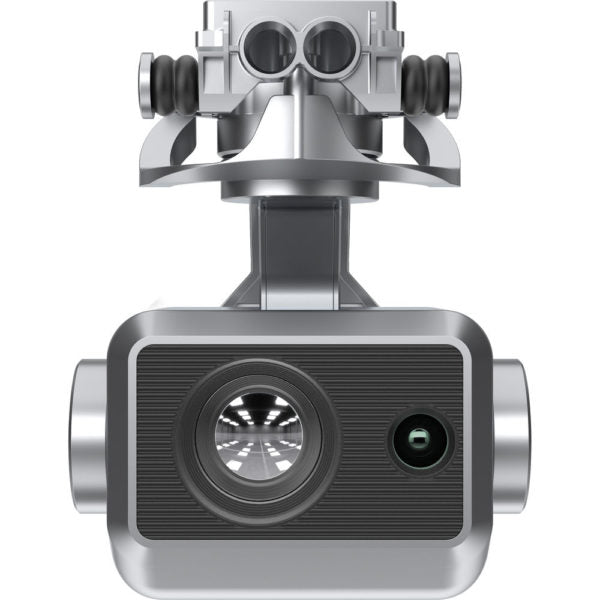

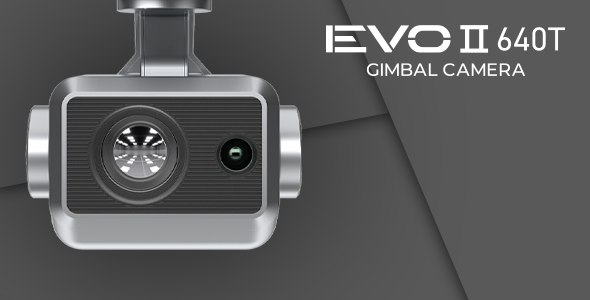

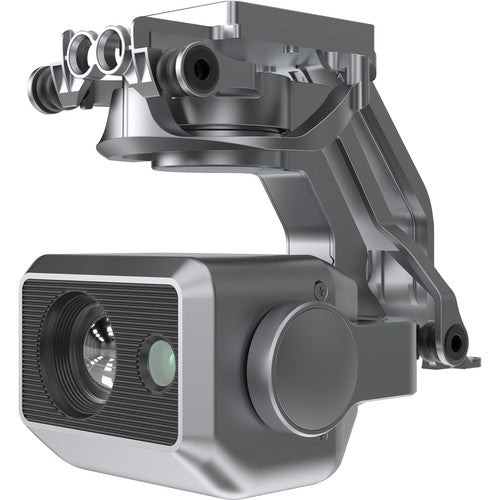

Autel Robotics new generation thermal camera
Resolutions up to 640×512 enable EVO II pilots to capture subjects with great thermal detail from up to 100 meters – 4x farther than any aircraft of its class. The 30Hz refresh rate produces smooth dynamic thermal movement by matching thermal images to video frame rate.
Multiple Temperature Measurement Modes,Professional Analysis Tool
- Central Temperature Measurement
- Spot Temperature Measurement
- Regional Temperature Measurement
Central temperature measurement: View real-time display of the temperature in the center area of the screen.
Spot temperature measurement: Tap the screen, and the temperature of the selected object will be displayed in real time. Regional temperature measurement: Get a dynamic view of the average temperature, maximum temperature, and minimum temperature displayed in a selected area.
Powerful Infrared Thermal Analysis Tool
Autel IR PC Tool: This free temperature measurement analysis tool is developed for the 640T, and enables users to quickly import images, edit and analyze temperature measurements, and to generate detailed reports for sharing and collaboration.
- Temperature Alarm
- Isotherm
- Image Enhancement
Temperature alarm: Monitors the screen temperature in real time. The system prompts the user when the temperature reaches a set threshold. Isotherm: Set a temperature range and the system will detect any objects within the temperature range specified. Image enhancement: Supports real-time adjustment of image brightness, contrast, and image details. The system will highlight any objects within the temperature target.
Maximum efficiency in all viewing conditions
EVO II Dual supports up to 10 thermal palettes to cope with a variety of complex environment and mission scenarios.
Picture-in-Picture Mode
The thermal image is integrated into the standard RGB image at the same time. This allows the user to obtain both visual and thermal data at the same time and allows for easier positioning and subject tracking.
8K allows even the smallest detail to be captured and preserved
Autel Evo II Dual records in resolutions up to 7680×4320. With 4 times as many pixels compared to 4k (and 16 times compared to HD), 8k videos redefine image clarity and depth.
48MP Camera
The Evo II Dual’s 48MP Sensor captures every forensic-relevant detail to assist in precise evidence capture. Both thermal and RGB images are provided with embedded Metadata making the EVOII Dual the ultimate Public Safety tool.
4X Lossless zoom
The high resolution provides the ability to zoom deep into a scene and crop an image or video to 4k without any loss in quality. Capture a scene, zoom in, and reframe your shots with ease.
4K HDR for greater dynamic range
4K HDR offers greater detail in highlights and shadows, providing higher-quality images from the most demanding environments.

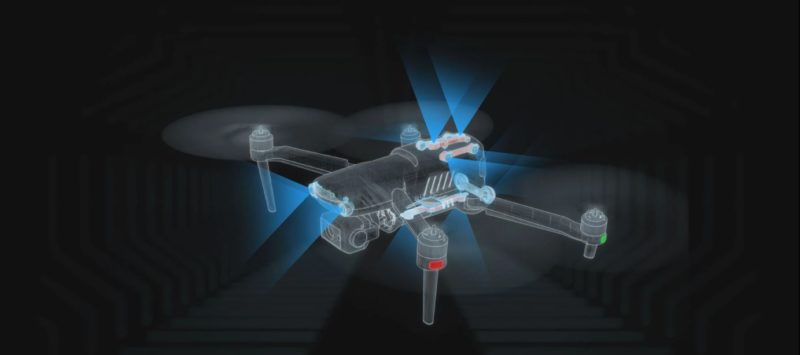

360° Obstacle Avoidance
Equipped with 19 groups of sensors including 12 visual sensors, the main camera, ultrasound, IMUs and other sensors enable building of three-dimensional maps and path planning in real time.
Dynamic Track 2.0
EVO II can model location and speed of targets simultaneously, predict their trajectory accurately, and track them continuously while identifying up to 64 objects at the same time.
Applications
Modular design Unlimited expansion
Interchangeable Payloads offer expansion capability
Real-time video distribution
Live Deck (V2 coming soon) enables pilots to share live, real-time aerial video across public or private networks, sharing data with Command Posts, stakeholders, or online presentations.
Open SDK
Create customized services, applications, access, and other features
